ASROCK B860M-H2 Intel 1851 DDR5 MOTHERBOARD

nique Feature
Superb Productivity
– PCIe Gen5 (M.2)
– Dual Channel DDR5
Rock-Solid Durability
– 5+1+1+1+1 Power Phase
ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
EZ Update
CPU
– Supports Intel Core Ultra Processors (Series 2) (LGA1851)
– Supports Intel Hybrid Technology
– Supports Intel Turbo Boost Max 3.0 Technology
– Supports Intel Thermal Velocity Boost (TVB)
– Supports Intel Adaptive Boost Technology (ABT)
– Integrated NPU for dedicated AI acceleration
– Intel B860
Memory
– Dual Channel DDR5 Memory Technology
– 2 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 8333+(OC)*
– Supports Clocked Unbuffered DIMM (CUDIMM)
– Max. capacity of system memory: 128GB
– Supports Intel Extreme Memory Profile (XMP) 3.0x
BIOS
– 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
– Intel Xe LPG Graphics Architecture
– 2 x HDMI 2.1 TMDS/FRL 8G Compatible, support HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Audio
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
– Gigabit LAN 10/100/1000 Mb/s
– Realtek 8111H
Slots
CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors
RAID
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
CPU:
– 1 x USB 3.2 Gen2x2 Type-C (Rear)
Chipset:
– 1 x USB 3.2 Gen1 Type-C (Front)
– 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
– 6 x USB 2.0 (2 Rear, 4 Front)
Connector
– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin) (Smart Fan Speed

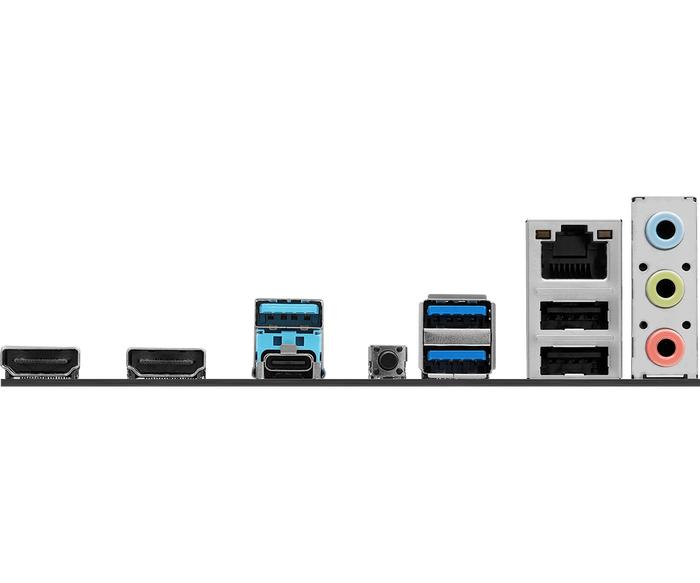

Rear Panel I/O
– 2 x Antenna Mounting Points
– 2 x HDMI Ports
– 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
– 3 x USB 3.2 Gen1 Type-A Ports
– 2 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Polychrome SYNC*
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
Accessories
– 1 x I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket
Form Factor
– Micro ATX Form Factor: 9.6-in x 8.3-in, 24.4 cm x 21.1 cm
OS
– Microsoft Windows 11 64-bit
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
