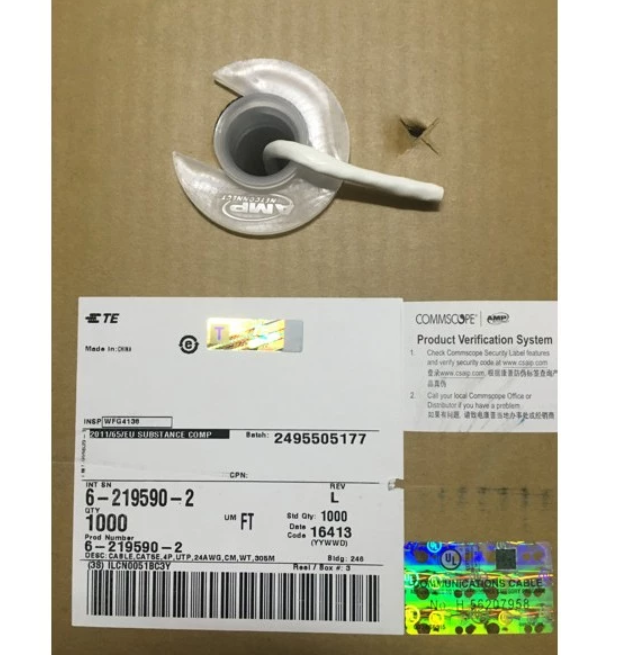

CABLE AMP TE COMSCOPE 6-219590-2 UTP CAT 5E GRAY

AMP TE diakusisi oleh PERUSAHAAN COMSCOPE USA TAHUN 2016

COMSCOPE Enhanced Category 5e (Cat5e) cables exceed TIA/EIA-568-B.2 Enhanced Category 5

(Category 5e) and ISO/IEC 11801 Class D, IEC61156-5, IEC60332-1, EN50288 and EN50173-1 performance

requirements, providing extra headroom for a more robust cabling system. They comply with all of the performance

requirements for current and proposed applications such as Gigabit Ethernet, 100BASE-Tx, token ring, 155 Mbps

ATM, 100 Mbps TP-PMD, ISDN, analog (Broadband, Baseband) and digital video and analog and digital voice (VoIP).

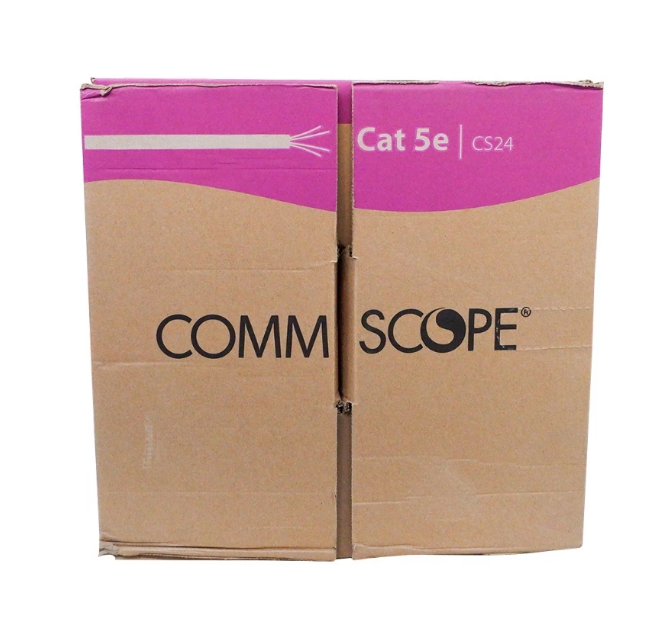

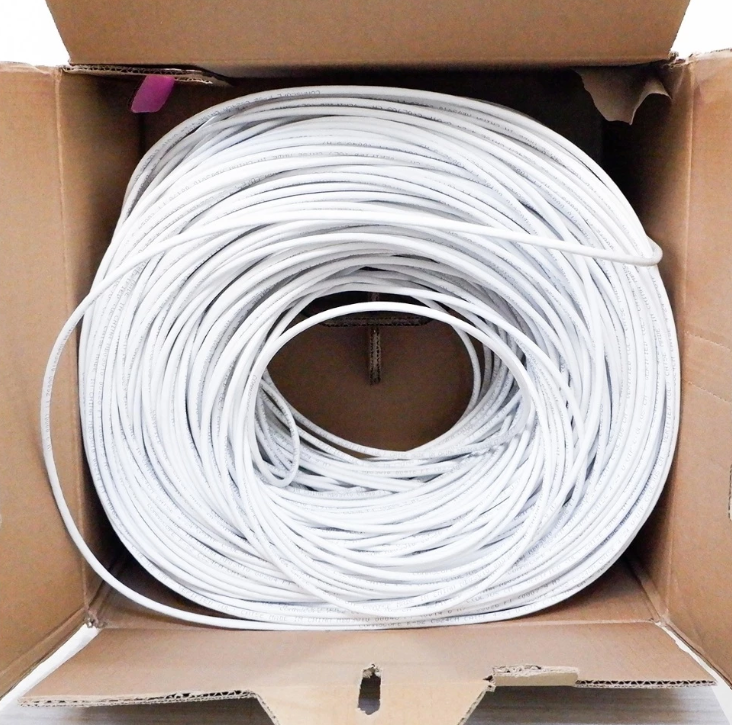

The cable is available in white, gray, blue and yellow, and packaged as reelex box.

Materials

Conductors 24 AWG solid bare copper

Insulation Polyethylene, 0.034 0.0036 in nom dia

Jacket PVC, 0.189 0.026 in nom dia

Electrical Characteristics

Impedance 100 15%, 1 MHz to 200 MHz

Propagation delay 538 ns/100 m max. @ 100 MHz

Skew 25 ns max

Mutual capacitance 5.6 nF max/100 m

Conductor resistance 9.38 max/100 m

Mechanical Characteristics

Bend radius The minimum bending radius is 8x outside diameter during installation and 4x the outside

diameter after installation 1″

Operating temperature -20C to 60C

Storage temperature -20C to 80C

Approvals

RoHS Compliant
