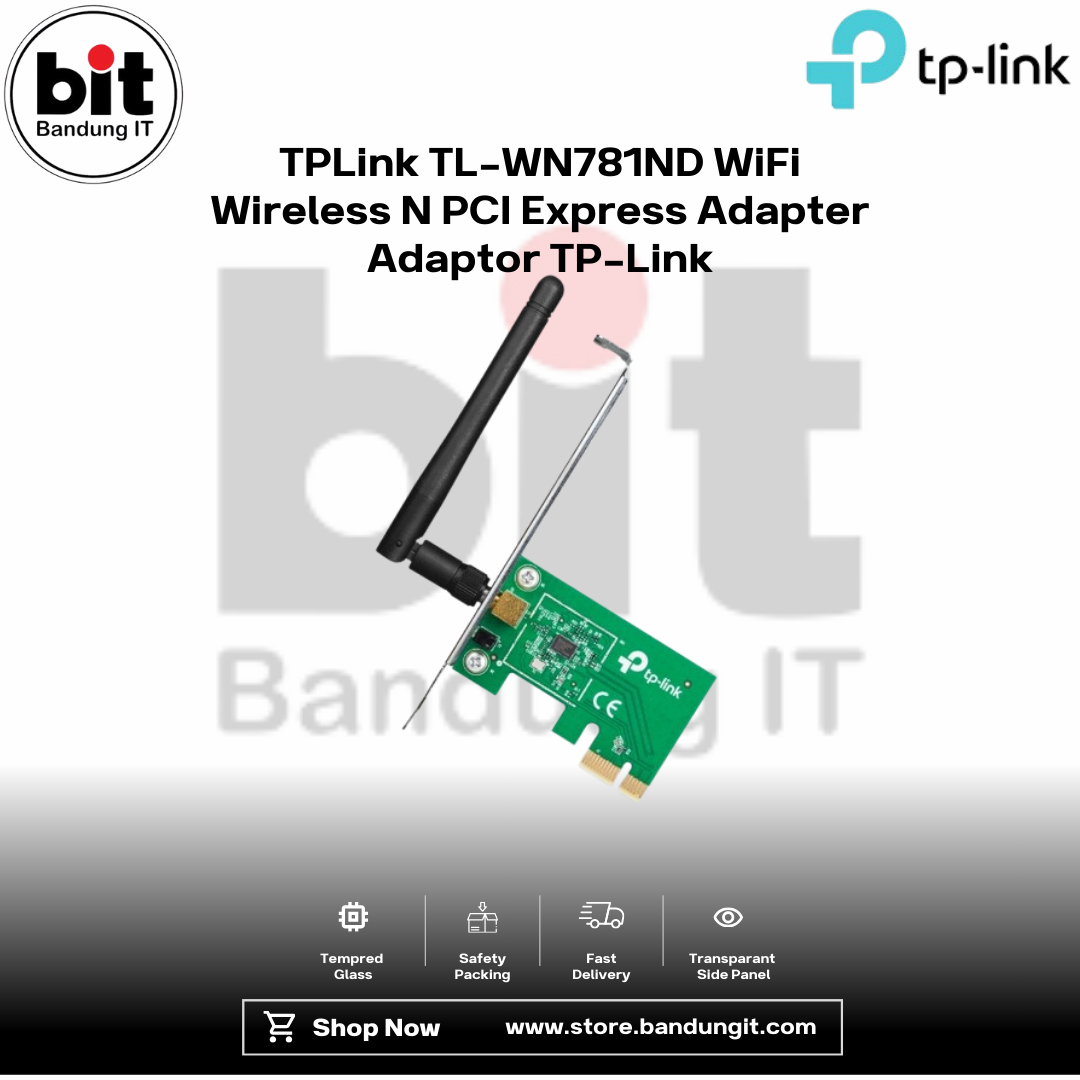

Deskripsi TPLink TL-WN781ND WiFi Wireless N PCI Express Adapter Adaptor TP-Link

Garansi Resmi TP-Link 1 Tahun.

FEATURES

– Up to 150Mbps wireless transmission rate

– Provides PCI Express interface

– Advanced secure connection with WPA/WPA2 encryption

– Bundled utility enables easy management

TECHNICAL SPECIFICATIONS

HARDWARE FEATURES

Interface PCI Express

Dimensions ( W x D x H ) 4.8 x 3.1 x 0.8in. (120.8 x 78.5 x 21.5mm)

Antenna Type Detachable Omni Directional (RP-SMA)

Antenna Gain 2dBi

WIRELESS FEATURES

Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency 2.400-2.4835GHz

Signal Rate 11n: Up to 150Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

Reception Sensitivity 130M: -68dBm@10% PER

108M: -68dBm@10% PER

54M: -68dBm@10% PER

11M: -85dBm@8% PER

6M: -88dBm@10% PER

1M: -90dBm@8% PER

Transmit Power 20dBm (EIRP)

Wireless Modes Ad-Hoc / Infrastructure mode

Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK

Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM

OTHERS

Certification CE, FCC, RoHS

Package Contents

Wireless Adapter

Detachable Omni directional antenna

Resource CD

Quick Installation Guide

System Requirements

Windows 10/8.1/8(32/64bits), Windows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits)

Environment Operating Temperature: 0~40 (32~104)

Storage Temperature: -40~70 (-40~158)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
